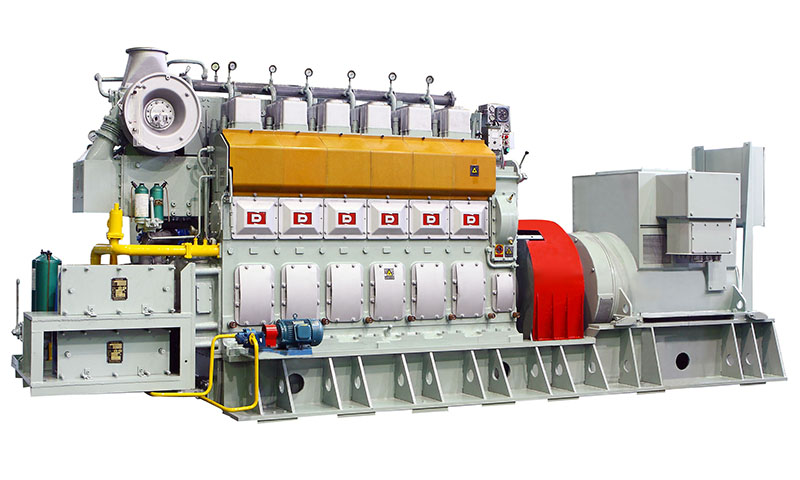

CSI Ningdong N210G Series Marine Gas Generator Set (350 – 1000kW)

Detail

Parameters Table

ItemUnitTechnical Parameters
Engine Type
Four-stroke, water-cooled, in-line, turbocharged and intercooled, inlet multi-point injection, prechamber spark plug ignition
Cylinder Bore × Strokemm210 × 300
No. Cylinder
6 / 8
Revolutionrpm750 – 1000
Compression Ratio
12.5 : 1
Mean Effective Pressurebar14.1 – 17.4
Engine Thermal Efficiency
41.5%
SFGCKJ/kW·h9000 (at rated power)
SLOCg/kW·h≤0.6
Gas Supply Pressurebar5 – 8
Fuel Type
LNG or CNG
Direction of Rotation
Starboard engine: clockwise（aft. end）


Port engine: anticlockwise（aft. end）

Cooling System
Closed circulating water cooling
Alignment Method
Flexible coupling
Starting Mode
Compressed air motor
Minimum Height for Lifting Pistonmm1650 (above crankshaft centerline)
NOX Emission Standard
IMO Tier III
Generator Rated PowerkW350 – 1000
Power Factor
0.8(lagging)


Voltage

Steady-State Voltage Regulating Rate%＜±2.5
Transient Voltage Regulating Rate%-15～＋20
Stabilization Times＜1.5
Voltage Fluctuation Rate%≤±1


Frequency

Steady State Frequency (rev.) Regulating Rate%＜5（parallel）
Transient Frequency (rev.) Regulating Rate%≤±10
Stabilization Times＜5
Frequency Fluctuation Rate%≤±0.5

Model Portfolio Table

ModelRated Power (kW)Revolution (rpm)Frequency (Hz)Engine ModelAlternator ModelDimensions (mm)Net Weight (Kg)
CCFJ350J(Z)350720/75050/60N6210GSiemens / CMXD5830×1895×296519800
CCFJ400J(Z)400720/75050/60N6210G5830×1895×296519800
CCFJ500J(Z)500720/75050/60N6210G5950×1895×296520400
CCFJ520J(Z)520720/75050/60N6210G5950×1895×296520400
CCFJ600J(Z)600720/75050/60N6210G5980×1985×296521000
CCFJ720J(Z)720900/100050/60N6210G5980×1985×296520300
CCFJ800J(Z)800900/100050/60N6210G6040×1985×296520600
CCFJ1000J(Z)1000900/100050/60N6210G7280×2300×327026000

Notes: All engine rating data is based on ISO 3046/1.
Reference conditions: Ambient 45℃, Relative humidity 60%, Intercooler coolant inlet 32 ℃.
If test ambient conditions are not the same as the fiducially ambient conditions. The power shall be revised according to ISO3046-1: 2002.
Power: An overload of 10% is permitted for one hour every twelve hours of operation.

Characteristics:

  • Meet with: ISO8528, ISO3046, GB/T13032.

  • Marine medium speed engine driven, unrestricted service configured;IMO Tier III certified.

  • Brushless self-excited alternator with AVR, G3 electricity quality.

  • Application:Power plant set, Emergency automatic start power, Marine Auxiliary power.

  • As offer customized power plant solutions with multi-options fuels of diesel, LPFO/HFO, biofuel, natural gas, tire pyrolysis oil, etc.

  • Easy installation, high reliability, low noise, low operating cost, and environmentally friendly.

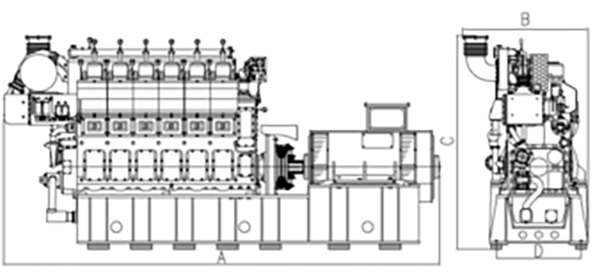

Outline

CSI Ningdong N210G Series Marine Gas Generator Set (350 - 1000kW)01

Remarks: Dimensions and weight are for reference only. For generator set model selection, please make communicate with relevant personnel. The delivery scope for each model engine shall be performed as per the corresponding technical files.
