Panama Chock ISO13729 (Deck Mounted)

Panama Chock ISO13729 (Deck Mounted)

Panama chocks are normally adopted for ships passing through the Panama Canal,

They meet normal mooring requirements and Panama Canal requirements.

Panama Chocks are used specifically for the guidance of rope mooring lines on board a large ship or vessel.

Intended for heavy duty use, the chocks are manufactured from high quality cast steel in various grades dependent upon the particular application and loading required.

Panama Chocks can be either mounted directly onto or into the hull, or alternatively can come supplied with a base plate to be bolted to a plinth.
Detail

Standard Features:

· Cast from high quality steel

· Deck mounted, variety of sizes available

· Paint primed or galvanised

· Compliant with ISO 13729 specifications

Material: ZG230-450 GB/T11352-2009

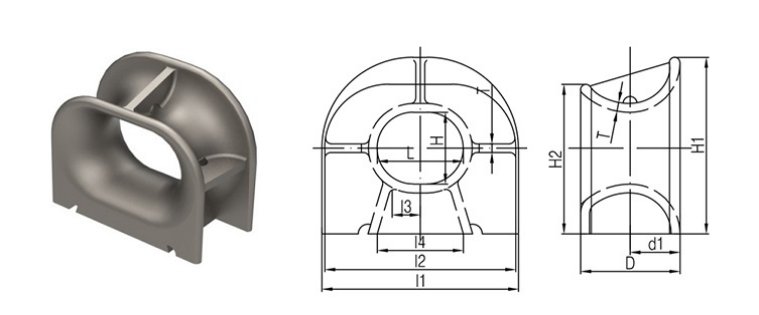

Product Code Nominal size   L×H×DDimensions (mm)SWL (ton)Wire rope dia(mm)Weight (kg)
l1l2l3l4H1H2H3d1T
PCA001250×200×2144884537626542736810810822231873
PCA002300×250×28661456589330551481144144264324142
PCA003350×250×333716660114403601525168168305628222
PCA004400×250×381820754139475652553192192367032310
PCA005450×250×381870804164524652553192192367232322
PCA006500×250×381920854189574652553192192367832337
PCA007400×250×428870796139500701609216216389036434
PCA008450×250×428920846164550701609216216389336452
PCA009500×250×428970896189600701609216216389536472
PCA010500×400×428970896176600851759216216389136528
PCA011500×250×525A106810001906527986752642644011744657
PCA012500×400×525A106810001936529488252642644011844724
PCA013500×250×525B107410001766528016802642644614444753
PCA014500×400×525B107410001796529518302642644614144825
