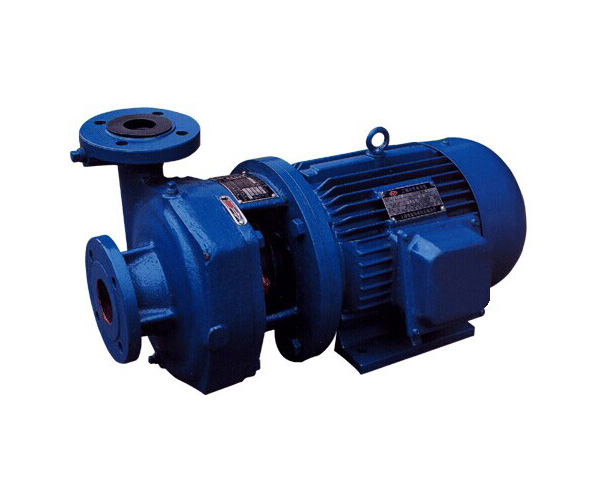

BL series marine horizontal direct-coupled centrifugal pump

The BL series marine horizontal direct-coupled centrifugal pump is designed for the transport of water and liquids with physical and chemical properties similar to water. This pump is an improved version of the BA type, offering a compact, lightweight design with a simple structure and easy handling. It is suitable for ship's bilge water pumping, main and auxiliary cooling water, fire fighting, and other uses. The pump's performance parameters are the same as those of the BA type, and it can handle liquid temperatures up to 100°C with a mechanical seal. The impeller of the BL series marine centrifugal pump is made of silicon brass, and the pump shaft is made of stainless steel
Detail

The BL series marine horizontal direct-coupled centrifugal pump is designed for the transport of water and liquids with physical and chemical properties similar to water. This pump is an improved version of the BA type, offering a compact, lightweight design with a simple structure and easy handling. It is suitable for ship's bilge water pumping, main and auxiliary cooling water, fire fighting, and other uses. The pump's performance parameters are the same as those of the BA type, and it can handle liquid temperatures up to 100°C with a mechanical seal. The impeller of the BL series marine centrifugal pump is made of silicon brass, and the pump shaft is made of stainless steel



Performance Parameter


BL(L)

50HZ/2900RPM

60HZ/3500RPM

50HZ/60HZ


Type

Capacity

(m3/h)


Head

(m)


Motor power

(kW)

Capacity

(m3/h)


Head

(m)


Motor power

(kW)


Efficiency

(%)


(NPSH)r

(m)


Impeller dia.

(mm)


Inlet/out dia.

(mm)

11/2BL-6

6

20.3

1.5

7.2

29.2

2.2

44

6.6

128

40/32

11

17.4

13.2

25

55.5

6.7

14

14

16.8

20

53

6

11/2BL-6A

5

16

1.5

6

23

2.2

38

6.5

115

40/32

9.5

14.2

11.4

20.4

51.5

6.9

13.5

11.2

16.2

16

50

6.1

11/2BL-6B

4.5

12.8

1.1

5.4

18.4

1.5

35

6.4

105

40/32

9

11.4

10.8

16.4

49

7

13

8.8

15.6

12.6

45

6.3

2BL-6

10

34.5

4

12

49.7

7.5

50.6

8.7

162

50/40

20

30.8

24

44.3

64

7.2

30

24

36

34.5

63.5

5.7

2BL-6A

10

28.5

3

12

41

5.5

54.5

8.7

148

50/40

20

25.2

24

36.3

65.6

7.2

30

20

36

28.8

64.1

5.7

2BL-9

11

21

2.2

13.2

30.2

4

56

8

127

50/40

20

18.5

24

26.6

68

6.8

25

16

30

23

66

6

2BL-9A

10

16.8

1.5

12

24

3

54

8.1

117

50/40

17

15

20.4

21.6

65

7.3

22

13

26.4

18.7

63

6.5

3BL-6

30

62

15

36

89.3

22

54.4

7.7

218

80/50

45

57

54

82.1

63.5

6.7

60

50

72

72

66.3

5.6

70

44.5

84

64

64

4.7

3BL-6A

30

45

11

36

64.8

18.5

55

7.5

192

80/50

40

41.5

48

59.8

62

7.1

50

37.5

60

54

64

6.4

60

30

72

43.2

59

6

3BL-9

30

35.5

7.5

36

51

15

62.5

7

168

80/50

45

32.6

54

47

71.5

5

55

28.8

66

41.4

68.2

3

3BL-9A

25

26.2

5.5

30

37.7

7.5

63.7

7

145

80/50

35

25

42

36

70.8

6.4

45

22.5

54

32.4

71.2

5

3BL-13

32.4

21.5

4

38.8

31

7.5

76

6.5

132

80/50

45

18.8

54

27

80

5.5

52.2

15.6

62.6

22.7

75

5

3BL-13A

29.5

17.4

3

35.4

25

5.5

75

6

120

80/50

39.6

15

47.5

21.6

80

5

48.6

12

58

17.3

74

4.5

3BL-13B

28

13.5

2.2

33.6

19.4

4

63

5.5

110

80/50

34.2

12

41

17.3

65

5

41.5

9.5

49.8

13.7

62

4

4BL-12

65

37.7

15

78

54.3

22

72

6.7

178

100/80

90

34.6

108

50

78

5.8

120

28

144

40.3

74.5

3.3

4BL-12A

60

31.6

11

72

45.5

18.5

70

6.9

163

100/80

85

28.6

102

41.2

76

6

110

23.3

132

33.5

73.5

4.5

4BL-18

65

22.6

11

78

32.5

18.5

75

5

143

100/80

90

20

108

28.8

78

110

17.1

132

24.6

74

4BL-18A

60

17.2

5.5

72

24.8

11

74

5

130

100/80

80

15.2

96

21.9

76

95

13.2

114

19

71.1

4BL-25

54

17.6

5.5

64.8

25.3

7.5

70

5

126

100/80

79

14.8

94.8

21.3

78

99

10

118.8

14.4

67

4BL-25A

50

14

4

60

20.2

5.5

68.5

5

114

100/80

72

11

86.4

15.8

75

86

8.5

103.2

12.2

72

CZ

50HZ/1450RPM

60HZ/1800RPM

50HZ/60HZ


Type

Capacity

(m3/h)


Head

(m)


Motor power

(kW)

Capacity

(m3/h)


Head

(m)


Motor power

(kW)


Efficiency

(%)


(NPSH)r

(m)


Impeller dia.

(mm)


Inlet/out dia.

(mm)

CZ100-160

136

10.7

7.5

163.2

15.4

15

78

4.5

175

125/100

CZ100-160A

145

8.2

5.5

174

11.8

11

78

4.14

160

125/100
