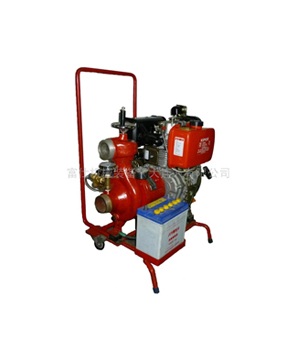

CWY Marine Diesel Engine Emergency Fire Pump

The CWY Marine Diesel Engine Emergency Fire Pump comes in two structural forms: fixed and portable. The fixed type features flange connections or threaded connections for the inlet and outlet, with a base made of a steel structure frame or a trolley frame with fixed legs; the portable type has threaded connections for the inlet and outlet, mounted on a trolley frame. This pump is primarily used for emergency fire-fighting on ships without power supply, and is also suitable for civil defense, industrial and mining enterprises, port docks, warehouse yards, and other similar locations. The pump set has the advantages of being lightweight, compact, flexible in movement, quick to start, fast in water discharge, having a large fuel tank capacity, being corrosion-resistant, reliable in use, and convenient for maintenance. In situations where the use of a battery is permitted, the unit can be equipped with a battery starting device.

The CWYG High Suction Head Marine Diesel Engine Emergency F
Detail

The CWY Marine Diesel Engine Emergency Fire Pump comes in two structural forms: fixed and portable. The fixed type features flange connections or threaded connections for the inlet and outlet, with a base made of a steel structure frame or a trolley frame with fixed legs; the portable type has threaded connections for the inlet and outlet, mounted on a trolley frame. This pump is primarily used for emergency fire-fighting on ships without power supply, and is also suitable for civil defense, industrial and mining enterprises, port docks, warehouse yards, and other similar locations. The pump set has the advantages of being lightweight, compact, flexible in movement, quick to start, fast in water discharge, having a large fuel tank capacity, being corrosion-resistant, reliable in use, and convenient for maintenance. In situations where the use of a battery is permitted, the unit can be equipped with a battery starting device.

The CWYG High Suction Head Marine Diesel Engine Emergency Fire Pump features a suction connection made with a hose, with a relay pump connected at the bottom of the suction hose. It uses a flexible shaft to transmit torque and is used in series with the fire pump to increase the suction head, with the highest suction head capable of reaching 15-20 meters



Type


Capacity

(m3/h)


Head

(m)


Speed

(rpm)


Absorb height

(m)


Max suction head

m


Efficiency

(%)


Water time

(S)

65CWY(G)-30

25

30

3600

5～6

6～15

63

≤35

65CWY(G)-40

30

40

3600

6～7

7～15

65

≤35

80CWY(G)-55

60

55

3600

6～7

7～15

68

≤35

80CWY(G)-60

50

60

3600

6～7

7～15

66

≤35

80CWY(G)-70

60

70

3000

4～5

5～15

44

≤100

100CWY(G)-45

100

45

3000

4～5

5～15

48

≤100

100CWY(G)-70

90

70

3000

4～5

5～15

50

≤100

150CWY(G)-55

160

55

3000

4～5

5～15

54

≤100


Type

Diesel engine

Inlet/Out dia.

(mm)

Weight

(kg)

Type

Power

65CWY(G)-30

KM186FEM

6kW

65/50

87

65CWY(G)-40

KM186FEM

6kW

65/50

87

80CWY(G)-55

KM376AM

15.3kW

80

240

80CWY(G)-60

KM376AM

15.3kW

80

240

80CWY(G)-70

KD388M

21.2kW

80

440

100CWY(G)-45

KD388M

21.2kW

100

480

100CWY(G)-70

KD488M

28.2kW

100

500

150CWY(G)-55

KM493ZG

45.5kW

150

540
