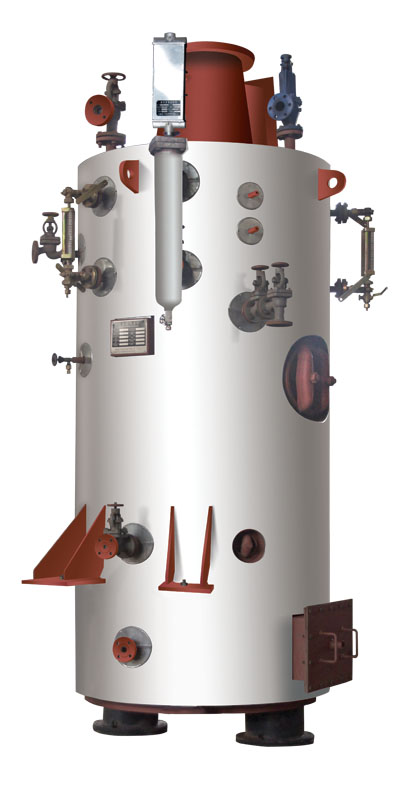

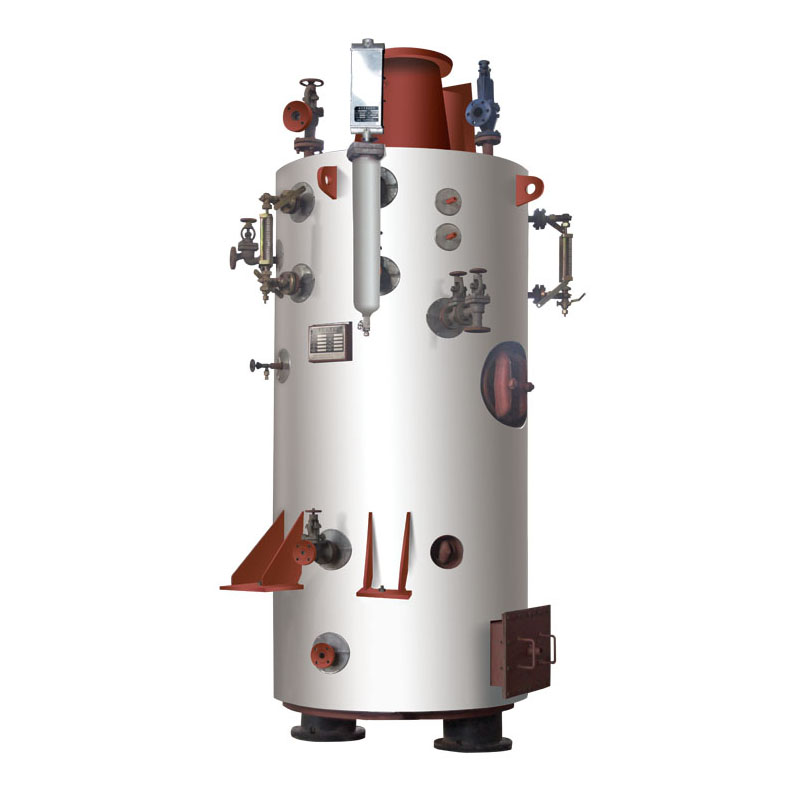

LFL Marine exhaust gas boiler

Exhaust-Gas Heating Surface：15㎡~500㎡

Working Pressure： 0.7MPa
Detail

Gas turbine exhaust heat boiler is also called main engine exhaust gas economizer.


Adopting optimum structure and design, layout is reasonable, high efficiency and energy saving.

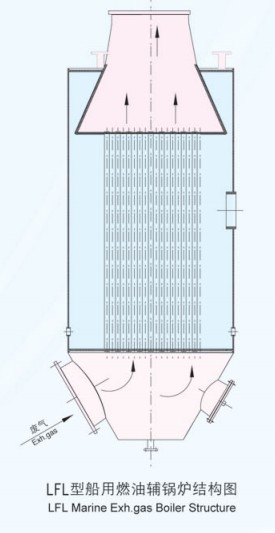

Adopting thread tube, improve the heat transfer efficiency and has a muffler effect.


图片关键词

图片关键词

图片关键词

图片关键词

Boiler   Model

Exhaust   gas

heating   area/m2

Design

pressure   /MPa

Design   Thermal

ail   temperanure/"C

Medum   volume

inside   the heaten/m

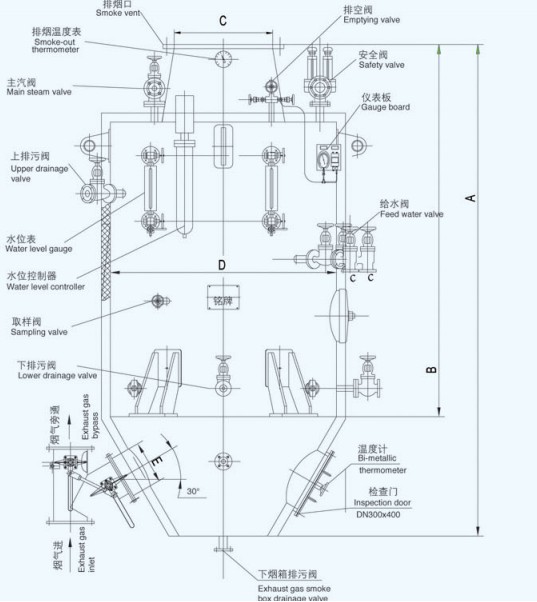

Dimension/mm

A

B

C

D

E

LRF36-0.8

36

0.8

220

0.25

3585

φ1160

DN400

DN400

DN80

LRF55-0.8

55

0.8

220

0.5

3994

φ1440

DN400

DN500

DN100

LRF80-0.8

80

0.8

220

0.75

3940

φ1660

DN500

DN600

DN100

LRF100-0.8

100

0.8

220

0.915

4410

φ1660

DN500

DN600

DN100

LRF120-0.8

120

0.8

220

1.1

4215

φ1880

DN600

DN700

DN100

LRF180-0.8

180

0.8

220

1.67

4250

φ2180

DN700

DN800

DN100

LRF200-0.8

200

0.8

220

1.86

4600

φ2300

DN900

DN1000

DN125

LRF240-0.8

240

0.8

220

2.2

4650

φ2480

DN1000

DN1000

DN125

LRF260-0.8

260

0.8

220

2.5

4700

φ2580

DN1000

DN1000

DN125
