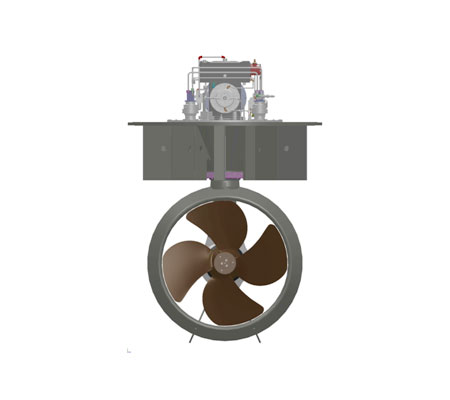

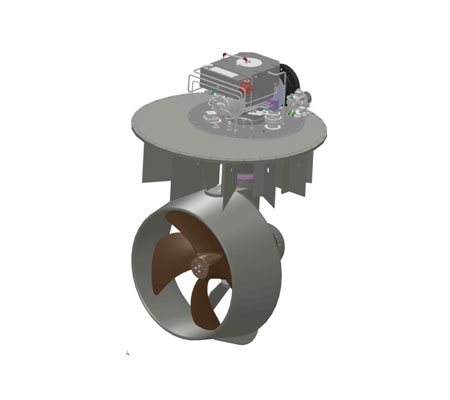

Full turn rudder Propeller

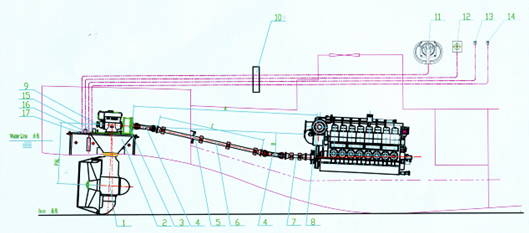

Arrangement Drawing ofthe Rudder Propeller

Remark

Arrangement Drawing ofthe Rudder Propeller

Max input torque of Rudder Propeller decides capacity of its transmit power of prime mover.The kind of Rudder Propeller operation,the the type of prime mover and the sort of vessel may influence the actual allowable input torque figure.It is recommended to consult with our technical staff before    selecting the Rudder Propeller size.

To select a proper Rudder Propeller.the output torque Mp of the prime mover(general diesel engine,hydraulic motor of electric motor)is the most important factor which is calculated as below:

Mp ≤ Sf * MR

Mp = N * 9549 / n

Sf = fz * fl * fs

Among them:

Mp:Outputtorque of prime mover

Sf:Rudder propeller servicefactors

Mr:Max input torque ofrudder propeller in Nm

N:Outputpower of prime mever in Kw

n:Input speed ofrudder propeller in r/min

Each type of Rudder Propeller has aspecific allowable design torque,according to the normal engineering safetyfactors.Because of our experience,we have considered that this design torquecannot be the last gist in the selection procedure.Serious consideration has tobe given to the various service conditions,resulting in a service factor Sfwith which the nominal design torque has to be corrected as the formulary:

Sf=0.75: Full power continuous rating 24 hours sevice(container ships,pushtugs)

Sf=0.9: Intermettent service with eventual full load(harbortugs,floating crane)

Sf=1.0: Auxiliary installations(tunnel thruster,dp-installations)

For the selection and calculation of Sf, please refer to the following table:

The safety factor of the SMMC rudder and propeller device generally meets the requirements of the classification society's normal navigation regulations, and the safety factor for ice class reinforcement should be between 0.33 and 0.67. The selection of propulsion devices with special installation requirements must be determined by our company.

SMMC Rudder Propeller
