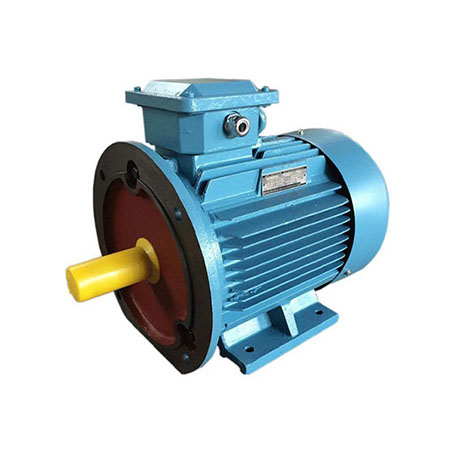

MX2-H Series High Efficiency Three phase Marine Asynchronous Motor

MX2—H Series are totally-enclosed, fan-cooled High Efficiency three-phase marine asynchronous motors of squirrel caged type. The efficiency could meet grade 2 of national standard GB18613-2012 “Minimum allowable value of energy efficiency and rating criteria of small and medium three-phase asynchronous motors ”this series motors are approved by CCS. Besides high efficiency, the motors has advantage of low noise,good-looking appearance,high protection.low temperature rise etc. The motors are suitable for driving various machines on ships such as pumps, blowers, separators, hydraulic engines and other auxiliary equipment.

Detail

MX2-H Series High Efficiency Three phase Marine Asynchronous Motor(Frame Size80~355)

Product Overview

MX2—H Series are totally-enclosed, fan-cooled High Efficiency three-phase marine asynchronous motors of squirrel caged type. The efficiency could meet grade 2 of national standard GB18613-2012 “Minimum allowable value of energy efficiency and rating criteria of small and edium three-phase asynchronous motors ”this series motors are approved by CCS. Besides high efficiency, the motors has advantage of low noise,good-looking appearance,high protection.low temperature rise etc. The motors are suitable for driving various machines on ships such as pumps, blowers, separators, hydraulic engines and other auxiliary equipment.

(Operating Conditions)

Altitude should be lower than 1000m above sea level

Ambient temperature 0~+45℃

Relative humidity should be less than 95%.

Inclination ：±30°

Swing：±22.5°

Influenced by Dew、Salt mist、Oil mist、Fungus and sea water.

Influenced by shock and vibration come from ships and offshore installation.

Type Designation

Bearing

Frame Size	No. of poles	Bearings
		Driving end		非轴伸端
		B3、B5、B35	V1	Non-Driving end
80	2，4	6204-2RS/C3		6204-2RS/C3
90	2，4，6	6205-2RS/C3		6205-2RS/C3
100	2，4，6	6206-2RS/C3		6206-2RS/C3
112	2，4，6	6206-2RS/C3		6206-2RS/C3
132	2，4，6	6208-2RS/C3		6208-2RS/C3
160	2，4，6	6309-2RS/C3		6309-2RS/C3
180	2，4，6	6311/C3		6311/C3
200	2，4，6	6312/C3		6312/C3
225	2 / 4，6	6312/C3/6313/C3		6312/C3
250	2 / 4，6	6313/C3/6314/C3		6313/C3
280	2/4，6	6314/C3/6317/C3		6314C3
315	2/4，6	6317/C3/N319/Z2	7317ACJ/7319ACJ	6317/C3/6319/Z2
355	2/4，6	6319/C3/N322/Z2	7319ACJ/7322ACJ	6319/C3/6322/Z2

(Technical Data)

2 poles

型号 Type	功率 Output kW	电流 current A		效率 Eff.100%	功率因数 cosφ	转速 Speed r/min		堵转转矩/额定转矩 Locked-rotor torque vs Rated toque Tst/Tn	堵转电流/额定电流 Locked-rotor current vs Rated current Ist/In	zui大转矩/额定转矩 Breakdown torque vs Rated torque Tmax/Tn
型号 Type	功率 Output kW	380V 50Hz	440V 60Hz	效率 Eff.100%	功率因数 cosφ	380V 50Hz	440V 60Hz	堵转转矩/额定转矩 Locked-rotor torque vs Rated toque Tst/Tn	堵转电流/额定电流 Locked-rotor current vs Rated current Ist/In	zui大转矩/额定转矩 Breakdown torque vs Rated torque Tmax/Tn
MX2-80M1-2-H	0.75	1.7	1.6	80.7	0.82	2870	3480	2.3	7	2.3
MX2-80M2-2-H	1.1	2.4	2.1	82.7	0.83	2875	3485	2.2	7.3
MX2-90S-2-H	1.5	3.2	2.8	84.2	0.84	2880	3490		7.6
MX2-90L-2-H	2.2	4.6	4.0	85.9	0.85	2880	3490		7.6
MX2-100L-2-H	3	6.0	5.2	87.1	0.87	2880	3490		7.8
MX2-112M-2-H	4	7.8	6.8	88.1	0.88	2915	3535		8.3
MX2-132S1-2-H	5.5	10.6	9.3	89.2	0.88	2930	3540	2.0	8.3
MX2-132S2-2-H	7.5	14.4	12.4	90.1	0.88	2930	3540		7.9
MX2-160M1-2-H	11	20.6	17.9	91.2	0.89	2945	3550		8.1
MX2-160M2-2-H	15	27.9	24.1	91.9	0.89	2945	3550		8.1
MX2-160L-2-H	18.5	34.2	30.1	92.4	0.89	2945	3550		8.2
MX2-180M-2-H	22	40.5	29.6	92.7	0.89	2950	3555		8.2
MX2-200L1-2-H	30	54.9	48.4	93.3	0.89	2965	3575		7.6
MX2-200L2-2-H	37	67.4	59.3	93.7	0.89	2965	3575		7.6
MX2-225M-2-H	45	80.8	69.8	94	0.9	2965	3575		7.7
MX2-250M-2-H	55	98.5	85.2	94.3	0.9	2975	3580		7.7
MX2-280S-2-H	75	134.0	115.7	94.7	0.9	2975	3580	1.8	7.1
MX2-280M-2-H	90	160.0	138.2	95	0.9	2975	3580
MX2-315S-2-H	110	195.0	168.4	95.2	0.9	2985	3585
MX2-315M-2-H	132	234.0	202.1	95.4	0.9	2985	3585
MX2-315L1-2-H	160	279.0	241.0	95.6	0.91	2985	3585		7.2
MX2-315L2-2-H	200	349.0	301.4	95.8	0.91	2985	3585			2.2
MX2-355M-2-H	250	436.0	376.5	95.8	0.91	2985	3585	1.6
MX2-355L-2-H	315	549.0	474.0	95.8	0.91	2985	3585	1.6

4 poles

型号 Type	功率 Output kW	电流 Current A		效率 Eff.100%	功率因数cosφ	转速 Speed r/min		堵转转矩/额定转矩 Locked-rotor torque vs Rated toque Tst/Tn	堵转电流/额定电流 Locked-rotor current vs Rated current Ist/In	zui大转矩/额定转矩 Breakdown torque vs Rated torque Tmax/Tn
		380V 50Hz	440V 60Hz			380V 50Hz	440V 60Hz
		380V 50Hz	440V 60Hz			380V 50Hz	440V 60Hz
MX2-80M2-4-H	0.75	1.8	1.6	82.5	0.75	1430	1740	2.3	6.6	2.3
MX2-90S-4-H	1.1	2.6	2.2	84.1	0.76	1430	1740		6.8
MX2-90L-4-H	1.5	3.5	3.0	85.3	0.77	1430	1740		7
MX2-100L1-4-H	2.2	4.8	4.1	86.7	0.81	1440	1750		7.6
MX2-100L2-4-H	3	6.3	5.5	87.7	0.82	1440	1750		7.6
MX2-112M-4-H	4	8.4	7.3	88.6	0.82	1455	1755	2.2	7.8
MX2-132S-4-H	5.5	11.2	9.7	89.6	0.83	1465	1765	2	7.9
MX2-132M-4-H	7.5	15.0	13.0	90.4	0.84	1465	1765	2	7.5
MX2-160M-4-H	11	21.5	18.6	91.4	0.85	1470	1770	2.2	7.7
MX2-160L-4-H	15	28.8	24.9	92.1	0.86	1470	1770	2.2	7.8
MX2-180M-4-H	18.5	35.3	30.5	92.6	0.86	1470	1770	2.0
MX2-180L-4-H	22	41.8	36.3	93	0.86	1470	1770
MX2-200L-4-H	30	56.6	49.2	93.6	0.86	1475	1775		7.3
MX2-225S-4-H	37	69.6	60.4	93.9	0.86	1480	1780		7.4
MX2-225M-4-H	45	84.4	73.7	94.2	0.86	1480	1780
MX2-250M-4-H	55	103.0	89.0	94.6	0.86	1485	1785	2.2
MX2-280S-4-H	75	136.0	117.5	95	0.88	1490	1795	2	6.9
MX2-280M-4-H	90	163.0	140.8	95.2	0.88	1490	1795		6.9
MX2-315S-4-H	110	197.0	170.2	95.4	0.89	1490	1795		7	2.2
MX2-315M-4-H	132	236.0	203.8	95.6	0.89	1490	1795		7
MX2-315L1-4-H	160	285.0	246.2	95.8	0.89	1490	1795		7.1
MX2-315L2-4-H	200	352.0	304.0	96	0.9	1490	1795
MX2-355M-4-H	250	440.0	380.0	96	0.9	1490	1795
MX2-355L-4-H	315	554.0	478.5	96	0.9	1490	1795

6poles

型号 Type	功率Output kW	电流 Current A		效率 Eff.100%	功率因数 cosφ	转速 Speed r/min		堵转转矩/额定转矩 Locked-rotor torque vs Rated toque Tst/Tn	堵转电流/额定电流 Locked-rotor current vs Rated current Ist/In	zui大转矩/额定转矩 Breakdown torque vs Rated torque Tmax/Tn
		380V 50Hz	440V 60Hz			380V 50Hz	440V 60Hz
		380V 50Hz	440V 60Hz			380V 50Hz	440V 60Hz
MX2-90S-6-H	0.75	2.0	1.7	78.9	0.71	945	1155	2.0	6	2.1
MX2-90L-6-H	1.1	2.8	2.4	81	0.73	950	1160		6
MX2-100L-6-H	1.5	3.8	3.3	82.5	0.73	950	1160		6.5
MX2-112M-6-H	2.2	5.4	4.7	84.3	0.74	965	1170		6.6
MX2-132S-6-H	3	7.2	6.2	85.6	0.74	975	1180		6.8
MX2-132M1-6-H	4	9.5	8.2	86.8	0.74	975	1180		6.8
MX2-132M2-6-H	5.5	12.7	11.0	88	0.75	975	1180		7
MX2-160M-6-H	7.5	16.2	14.0	89.1	0.79	980	1185		7
MX2-160L-6-H	11	23.1	20.0	90.3	0.8	980	1185		7.2
MX2-180L-6-H	15	30.9	26.8	91.2	0.81	980	1185		7.3
MX2-200L1-6-H	18.5	37.8	32.6	91.7	0.81	985	1190		7.3
MX2-200L2-6-H	22	44.8	38.8	92.2	0.81	985	1190		7.4
MX2-225M-6-H	30	59.1	51.0	92.9	0.83	985	1190		6.9
MX2-250M-6-H	37	71.7	62.0	93.3	0.84	985	1190		7.1
MX2-280S-6-H	45	85.8	74.1	93.7	0.85	990	1190		7.3	2
MX2-280M-6-H	55	103.0	89.0	94.1	0.86	990	1190		7.3
MX2-315S-6-H	75	143.0	123.5	94.6	0.84	990	1190		6.6
MX2-315M-6-H	90	170.0	146.8	94.9	0.85	990	1190		6.7
MX2-315L1-6-H	110	207.0	178.8	95.1	0.85	990	1190		6.7
MX2-315L2-6-H	132	244.0	210.7	95.4	0.86	990	1190		6.8
MX2-355M1-6-H	160	296.0	255.6	95.6	0.86	995	1190	1.8
MX2-355M2-6-H	200	365.0	315.2	95.8	0.87	995	1190
MX2-355L-6-H	250	456.0	393.8	95.8	0.87	995	1190

(Mounting and Overall Dimensions)

Frame Size	Mounting and overall dimensions
	A	B	C	D	E	F	G	GD	H	K	AB	AC	AD	HD	L
80M	125	100	50	19	40	6	15.5	6	80	10	165	175	160	240	305
90S	140		56	24	50	8	20	7	90		180	205	175	270	395
90L		125													425
100L	160	140	63	28	60		24		100	12	205	215	185	290	435
112M	190		70						112		245	255	200	320	475
132S	216		89	38	80	10	33	8	132		280	310	245	365	535
132M		178													550
160M	254	210	108	42	110	12	37		160	15	330	340	270	440	730
160L		254													760
180M	279	241	121	48		14	42.5	9	180		355	390	290	475	805
180L		279													835
200L	318	305	133	55		16	49	10	200	19	395	445	355	525	890
225S	356	286	149	（55）/60	（110）/140	（16）/18	(49)/53	(10)/11	225		435	495	370	580	865
225M		311													(865)/895
250M	406	349	168	（60）/65	140	18	(53)/58	11	250	24	490	550	455	650	995
280S	457	368	190	（65）/75		（18）/20	(58)/67.5	(11)/12	280		550	630	470	705	1030
280M		419													1080
315S	508	406	216	（65）/80	（140）170	(18)/22	(58)/71	(11)/14	315	28	744	645	576	875	(1270)/1300
315M		457													(1320)/1350
315L		508
355M	610	560	254	（75）/95		(20)/25	(67.5)/86	(12)/14	355	28	740	750	680	1045	(1560)/1590
355L		630
Note ：The data in bracket refer to 2 poles motors

（B35 Type）

Frame size	Mounting and overall dimensions
	A	B	C	D	E	F	G	GD	H	K	M	N	P	R	S	T	AB	AC	AD	HD	L
80M	125	100	50	19	40	6	15.5	6	80	10	165	130	200	0±1.5	12	3.5	165	175	160	240	305
90S	140		56	24	50	8	20	7	90								180	205	175	270	395
90L		125																			425
100L	160	140	63	28	60		24		100	12	215	180	250	0±2.0	15	4	205	215	185	290	435
112M	190		70						112								245	255	200	320	475
132S	216		89	38	80	10	33	8	132		265	230	300				280	310	245	365	535
132M		178																			550
160M	254	210	108	42	110	12	37		160	15	300	250	350	0±3.0	19	5	330	340	270	440	730
160L		254																			760
180M	279	241	121	48		14	42.5	9	180								355	390	290	475	805
180L		279																			835
200L	318	305	133	55		16	49	10	200	19	350	300	400				395	445	355	525	890
225S	356	286	149	（55）/60	（110）/140	（16）/18	（49）/53	（10）/11	225		400	350	450	0±4.0			435	495	370	580	865
225M		311																			(865)/895
250M	406	349	168	（60）/65	140	18	（53）/58	11	250	24	500	450	550				490	550	455	650	995
280S	457	368	190	（65）/75		（18）/20	（58）/67.5	（11）/12	280								550	630	470	705	1030
280M		419																			1080
315S	508	406	216	（65）/80	(140)170	（18）/22	（58）/71	（11）/14	315	28	600	550	660		24	6	744	645	576	875	(1270)/1300
315M		457																			(1320)/1350
315L		508
355M	610	560	254	（75）/95		（20）/25	（67.5）/86	(12)/14	355		740	680	800				740	750	680	1045	(1560)/1590
355L		630
Note ：The data in bracket refer to 2 poles motors.

（V1 Type）

Frame Size	Mounting and overall dimensions
	D	E	F	G	GD	M	N	P	S	R	T	AC	AD	HF	L
80M	19	40	6	15.5	6	165	130	200	12	0±1.5	3.5	175	160	260	350
90S	24	50	8	20	7							205	175	270	440
90L															475
100L	28	60		24		215	180	250	15	0±2.0	4	215	185	300	480
112M												255	195	320	520
132S	38	80	10	33	8	265	230	300				310	245	380	580
132M															590
160M	42	110	12	37		300	250	350	19	0±3.0	5	340	270	450	740
160L															815
180M	48		14	42.5	9							390	290	490	830
180L															845
200L	55		16	49	10	350	300	400				445	355	550	940
225S	(55)/60	(110)/140	(16)/18	(49)/53	（10）/11	400	350	450		0±4.0		495	370	610	945
225M															(945)/975
250M	(60)/65	140	18	(53)/58	11	500	450	550				550	455	645	1095
280S	(65)/75		(18)/20	(58)/67.5	（11）/12							630	470	720	1155
280M															1195
315S	(65)/80	(140)170	(18)/22	(58)/71	（11）/14	600	550	660	24		6	645	576	900	(1370)1400
315M															(1460)1490
315L
355M	(75)/95		(20)/25	(67.5)/86	（12）/14	740	680	800				750	680	1035	(1650)1680
355L
The data in bracket refer to 2 poles motors.

（B5 Type）

Frame size	Mounting and overall dimensions
	D	E	F	G	GD	M	N	P	R	S	T	AC	AD	HF	L
80M	19	40	6	15.5	6	165	130	200	0±1.5	12	3.5	175	160	230	305
90S	24	50	8	20	7							205	175	235	395
90L															425
100L	28	60		24		215	180	250	0±2.0	15	4	215	185	275	435
112M												255	195	285	475
132S	38	80	10	33	8	265	230	300				310	245	340	535
132M															550
160M	42	110	12	37		300	250	350	0±3.0	19	5	340	270	400	730
160L															760
180M	48		14	42.5	9							390	290	435	805
180L															835
200L	55		16	49	10	350	300	400				445	355	480	890
225S	(55)/60	（110）/140	（16）/18	（49）/53	(10)/11	400	350	450	0±4.0			495	370	530	865
225M															(865)/895
The data in bracket refer to 2 poles motors.

Frame Size	Mounting and Overall Dimension
	B34									B14、B34					B3、B34			B14	L
	A	B	C	D	E	F	G	H	K	M	N	P	S	T	AB	AC	HD	AD	L
80	125	100	50	19	40	6	16	80	10	100	80	120	M6	3	165	175	240	160	305
90S	140	100	56	24	50	8	20	90		115	95	140	M8		180	205	270	175	395
90L	140	125	56	24	50		20	90		115	95	140			180	205	270	175	425
100L	160	140	63	28	60		24	100	12	130	110	160		3.5	205	215	290	185	435
112M	190		70	28	60		24	112		130	110	160			245	255	320	195	475
132S	216		89	38	80	10	33	132		165	130	200	M10		280	310	365	245	535
132M	216	178	89	38	80	10	33	132		165	130	200	M10		280	310	365	245	550
