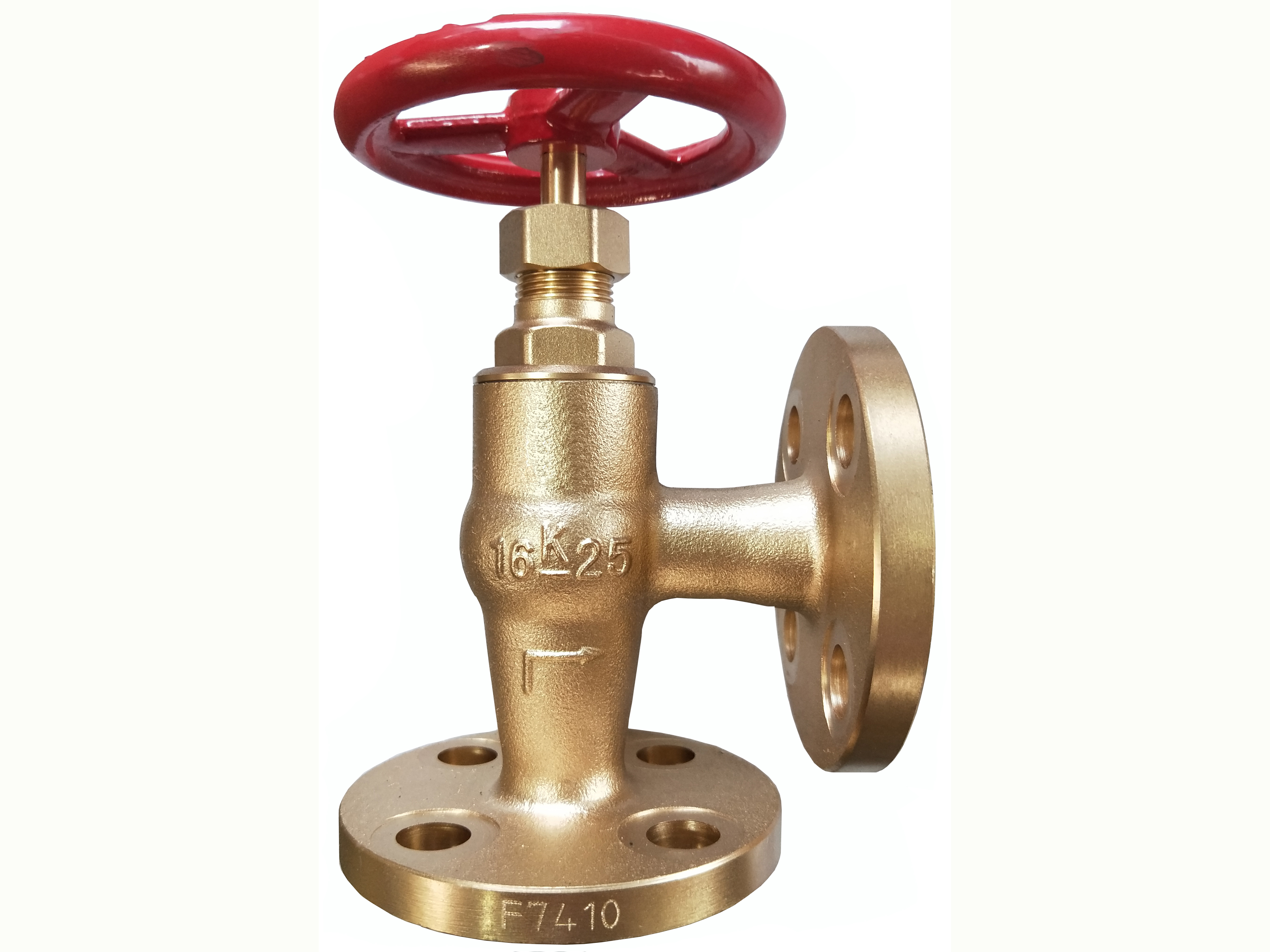

JIS F 7410 Bronze 16K screw-down check angle valves

JIS F 7410 Bronze 16K screw-down check angle valves details:

Standard: JIS F7301,7302,7303,7304,7351,7352,7409,7410
Pressure：5K,10K，16K
Size:DN15-DN300
Material：cast iron,cast steel,forged steel,brass,bronze
Type:globe valve,angle valve,
Media: Water,Oil,Steam

DESIGN STANDARD JIS F 7410-1996 TEST JIS F 7400-1996 HYDRAULTC INSPECTION TEST PRESSURE/MPA BODY 3.3 SEAT 2.42-0.4

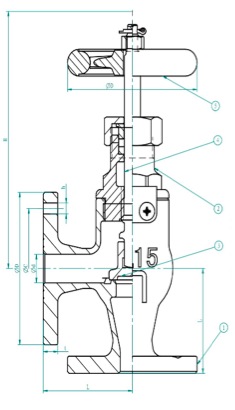

5 HANDWHEEL FC200 4 STEM C3771BD OR BE 3 DISC BC6/H62 2 BONNET BC6/H62 1 BODY BC6/H62 NAME OF PART MATERIAL BRONZE 16K SCREW-DOWN CHECK ANGLE VALVE
DN d L D C NO. h t H D2 15 15 70 95 70 4 15 12 120 80 20 20 75 100 75 4 15 14 125 100 25 25 85 125 90 4 19 14 140 125 32 32 95 135 100 4 19 16 145 125 40 40 100 140 105 4 19 16 160 140
