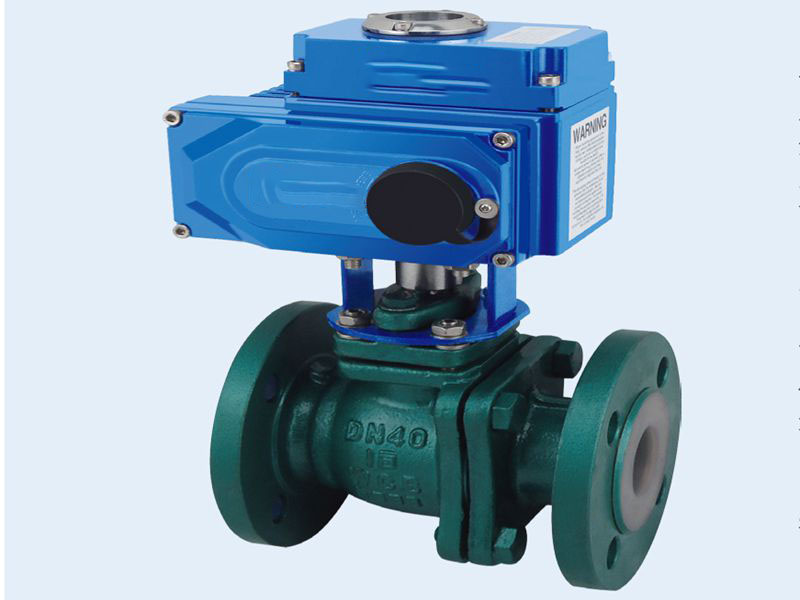

Electrically Actuated Flanged Soft-Seated Butterfly Valve - LDBAAF Series

This product is a 90° rotating ball valve with excellent sealing performance and large flow capacity. It is widely used in various fields such as petroleum, chemical industry, metallurgy, light industry, papermaking, power generation, and refrigeration
Document Download
Detail

This product is a 90° rotary ball valve with excellent sealing performance, large flow capacity, low flow resistance coefficient, and features such as simple structure, easy maintenance, and long service life.

The valve body channel and connecting pipe diameter are equal and form a single diameter, allowing the medium to flow through with minimal loss. Coupled with high-performance actuator institutions such as JL and JLQ, the product is typically used in applications with strict sealing requirements. In addition to controlling gas, liquid, and steam media, it is also suitable for controlling sewage and media containing fibrous impurities.

It is widely used in various fields such as petroleum, chemical industry, metallurgy, light industry, papermaking, power generation, and refrigeration.


Technical   Parameters


Power Supply Voltage

AC220V, AC380V (Other special configurations   available)

Ambient Temperature

-30℃ to +70℃

Protection Level

IP67



Function   Options


Explosion-proof Type

Explosion-proof   Class: dIIBT4

Signal Feedback

Signal Feedback X1 Mechanical passive   signal, X2 Active signal

With Heater

With   Heater Can dry components inside the actuator in a humid environment

Manual Function

Manual Function The electric actuator has   manual open and close valve functions

Switch Type

Switch   Type Power on to open, power on to close

Regulating Type

Regulating   Type Input 4~20mA, 1~5V, 0~10V signals to achieve ball valve regulation   function

Applicable Medium

Water,   air, steam, gas, oil, ethanol, acidic and alkaline gases or liquids



Standard   Specifications


Flange Standard

GB9113.1

Inspection and Test

GB/T13927-1992

Design Standard

GB/T 12237-1989



Valve   Body Description


Nominal Diameter

15-250mm

Nominal Pressure

PN10,   PN16

Connection Method

Flange   connection

Valve Body Material

WCB,   SS304, SS316, SS316L

Disc Material

WCB,   PTFE

Seal Material

PTFE

Working Temperature

C2: -20℃ to 80℃

Working Temperature

C3:   -30℃ to 150℃
