Electrically Actuated Flanged Soft-Seated Butterfly Valve

Electrically Actuated Flanged Soft-Seated Butterfly Valve - LDBUC Series, compatible with the LDE Series electric actuator, capable of receiving control signals and single-phase power supply for operation. Suitable for viscous, granular, and fibrous media, widely used across various industries. Product features include three-dimensional eccentric structure, multi-layer sealing options, and resistance to high temperatures, high pressures, and corrosion. Selling points are corrosion
Document Download
Detail


Application

This product is a combination of a butterfly valve with the LDE series electric actuator (available in explosion-proof version), which can be controlled by inputting control signals (4-20mA or 1-5V DC) and a single-phase power supply. The electric butterfly valve has advantages such as strong functionality, compact size, light weight, reliable performance, simple matching, and high flow capacity.

It is particularly suitable for applications involving viscous, granular, and fibrous media. Currently, this electric control valve butterfly valve is widely used in industrial automatic control systems across various industries, including food, environmental protection, light industry, petroleum, papermaking, teaching and research equipment, and power.

Product Features

  • Three-dimensional eccentric structure for minimal wear and excellent sealing

  • Multiple sealing options including multi-layer sealing, hard sealing, and metal sealing

  • Capable of withstanding high temperatures, high pressures, and corrosion.


Technical Parameters
Power Supply VoltageAC220V, AC380V (Other special configurations   available)
Ambient Temperature-30℃ to +70℃
Protection LevelIP67
　
Function   Options
Explosion-proof Type   Explosion-proof   Class: dIIBT4
Signal Feedback   Signal Feedback X1 Mechanical passive   signal, X2 Active signal
With Heater   With Heater Can dry   components inside the actuator in a humid environment
Manual FunctionManual Function The electric actuator has   manual open and close valve functions
Switch TypeSwitch Type Power on   to open, power on to close
Regulating TypeRegulating Type Input   4~20mA, 1~5V, 0~10V signals to achieve ball valve regulation function
Applicable MediumWater, air, steam,   gas, oil, ethanol, acidic and alkaline gases or liquids
　
Standard   Specifications
Flange StandardGB9113.1
Inspection and TestGB/T13927-1992
Design StandardGB/T 12237-1989
　

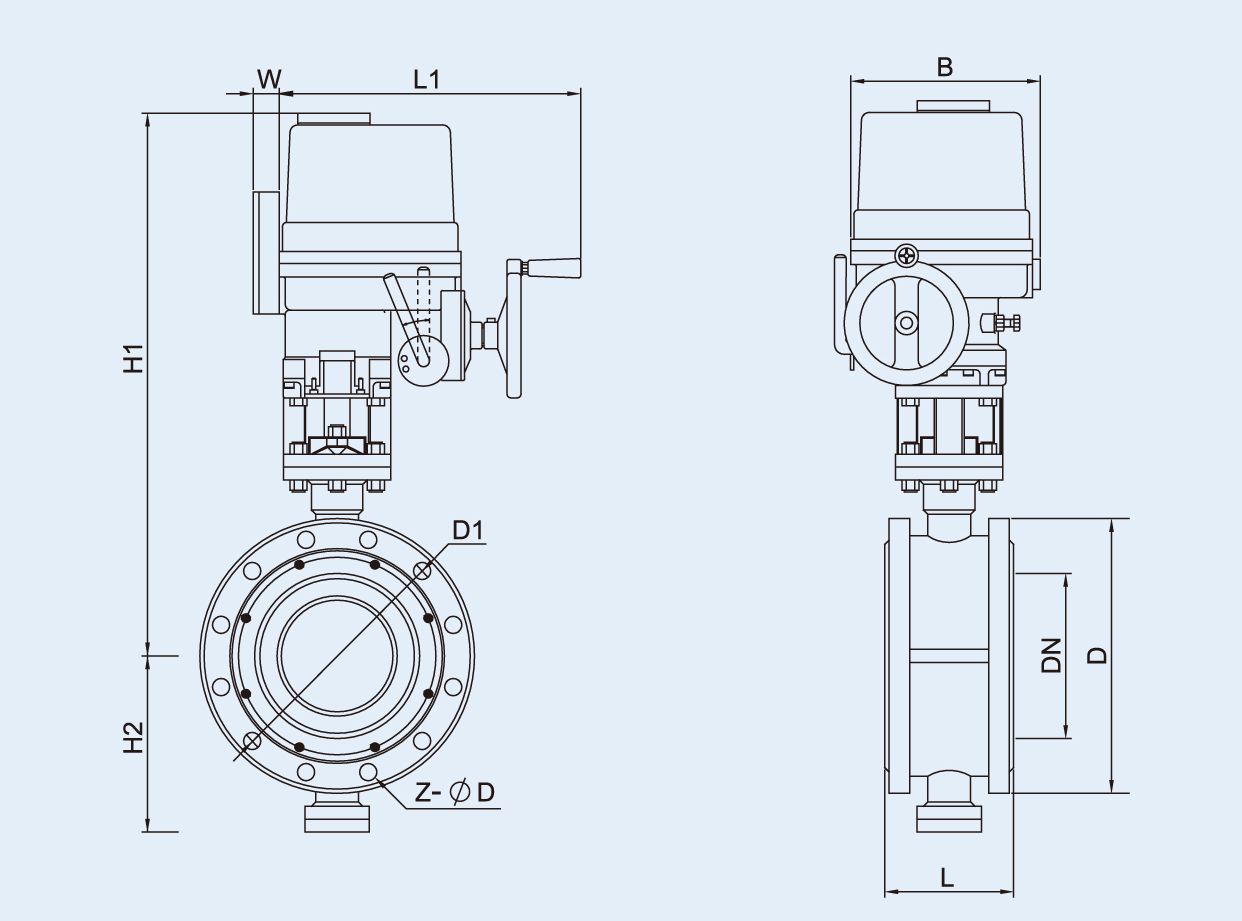

Valve   Body Description
Nominal Diameter   15-250mm
Nominal PressurePN10, PN16
Connection Method   Flange   connection
Valve Body Material   WCB, SS304, SS316,   SS316L
Disc MaterialWCB, PTFE
Seal MaterialPTFE
Working TemperatureC2: -20℃ to 80℃
Working TemperatureC3: -30℃ to 150℃
